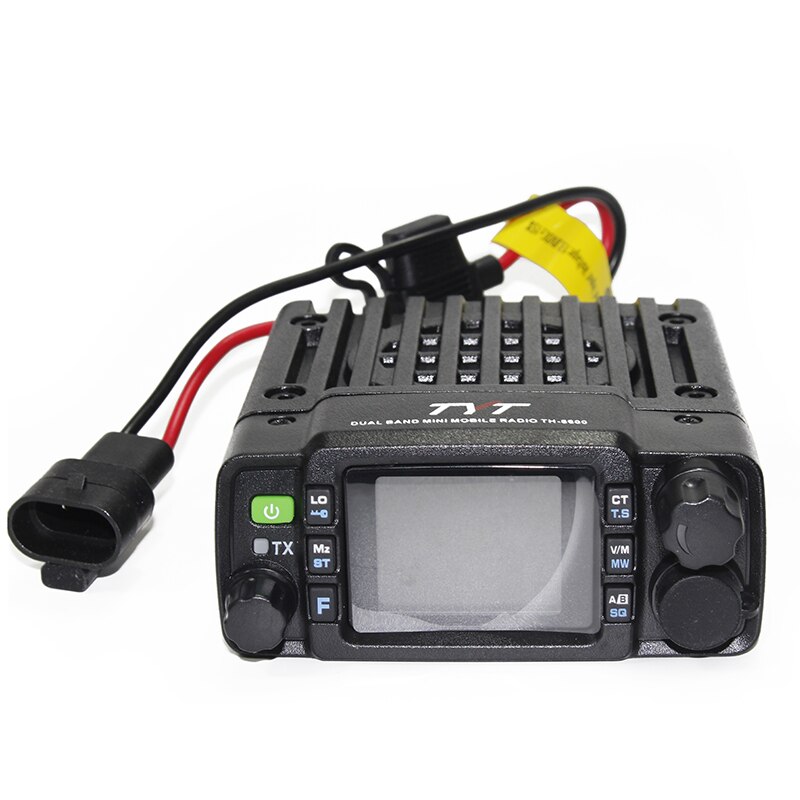

Tytera TH-8600 IP67 Waterproof TYT TH8600 mini Mobile Radio Powerful Dual Band VHF(136-174Mhz) UHF(400-480Mhz) 25W Motorcycle Car Truck SUV Outdoor
The TYT TH-8600 is IP67 waterproof 25W VHF(136-174Mhz); UHF(400-480Mhz) Dual band, dual standy, dual dispaly, LCD color display mobile radio.It is the solid choice for outdoor enthusiasts and motorcycle enthusiasts.In the above vedio, We fully soak TYT TH-8600 car radio in the water of 1.5m deep to test call.
Main Functions
Dual band, dual display and dual standby
25W for VHF and 20W for UHF
200 channels
P1-P4 programmable functional keys
IP67 waterproof
Color LCD display
DTMF
2Tone/5Tone
CTCSS/DCS
1750Hz tone
Remote stun/kill and activate
Specifications:
|
General |
|
|
Frequency Range(MHz) |
VHF(136-174Mhz); UHF(400-480Mhz) |
|
Channel |
200 |
|
Frequency Stability |
±1ppm |
|
Voltage Rating |
DC 13.8V |
|
Operating Temperature |
-30℃~+60℃ |
|
Storage Temperature |
-30℃ ~+85℃ |
|

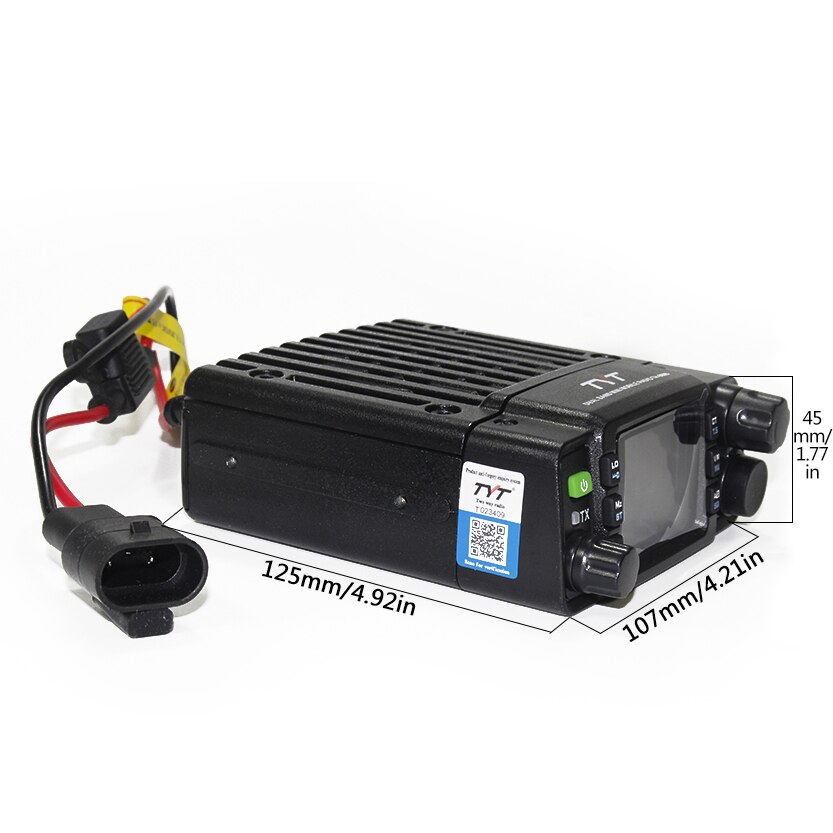

Dimention |
107*125*45mm |
|
Transmitter |
|
|
Output power |
25W(VHF) |
|
Transmitting Current |
4A13.8V |
|
Standby Current |
0.2A 13.8V |
|
FM Modulation |
Wide band:16K0F3E |
|
Modulation distortion |
＜5% |
|
FM Hun and Noise |
≥45dB 25KHz |
|
Adjacent Ch. power |
≥60dB 12.5KHz |
|
Audio response |
+1~-3dB |
|
Receiver |
|
|
Frequency stability (-20℃ +60℃,+25℃) |
+/-1.0ppm |
|
Sensibility |
0.2μV |
|
Adjacent Ch. Selectivity |
60dB 12.5KHz |
|
Intermodulation |
≥60dB/≥65dB |
|
Spurious Rejection |
≥70dB |
|
Audio response |
+1~-3dB |
|
RF Sensitivity |
-122dbm(12db SINAD) |
|
Audio Distortion |
<5% |
|
FM Hum and Noise |
-40dB 12.5KHz |
|
Rated audio |
Rated audio |
Package include:
· 1 x TYT TH8600 Waterproof Mobile radio
· 1 x Power cable

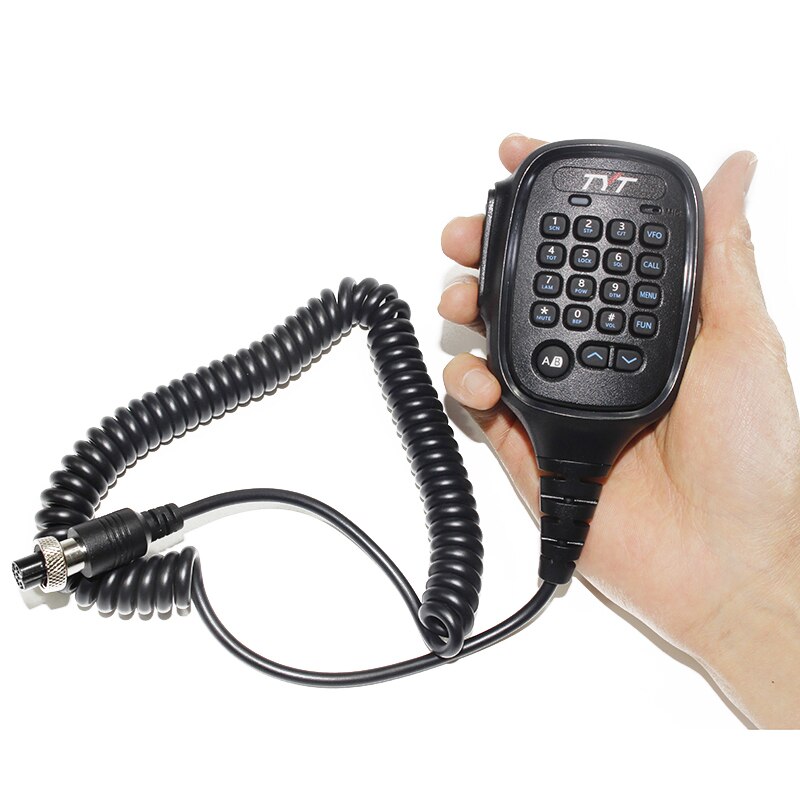

· 1 x Handheld mic
· 1 x One pack of screw and accessories
· 1 x User’s manual
