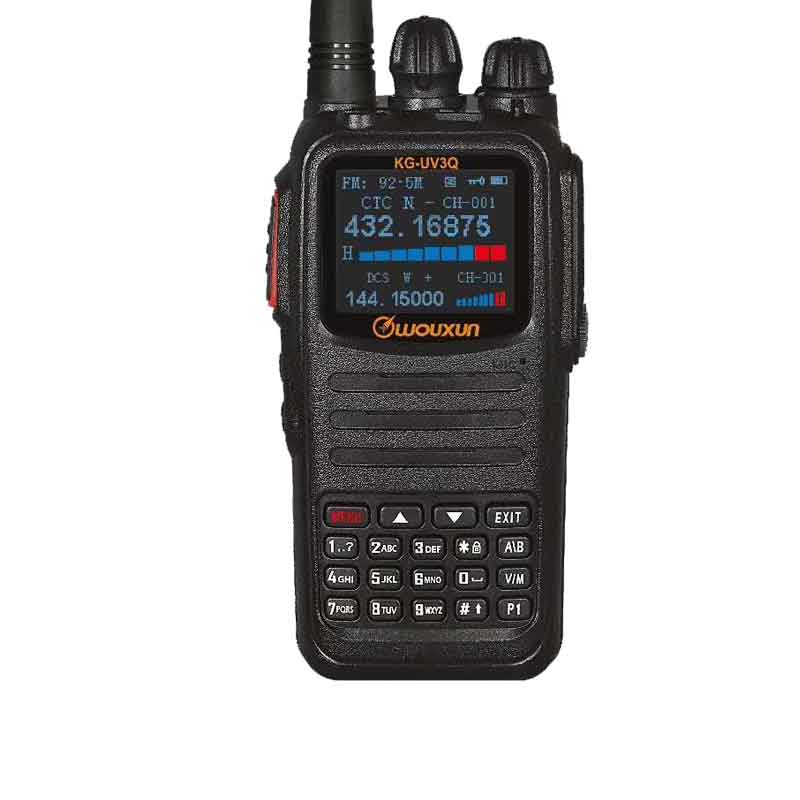

Wouxun UV3Q HAM Commercial Radio Color Screen 10W Powerful 7 Bands/Air Band Cross Band Repeater Classic Circuit Walkie Talkie

MAIN FUNCTIONS

Memory Channels 999
QT/DQT Encoding / Decoding , QT / DQT Scan
VOX and SOS Funcion
Multi Definition for Sidekeys
Incoming Message Display Caller ID display
DTMF Encoding and Decoding
All Calls , Group Calls And Selective Calls
Dual Display ,Two Independent Operation System
Large Color Screen
Duplex Work Mode and Dual Receiving
Cross Band Repeater
Power on Message Editable

Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
Chinese and English Voice Guide
Chinese and English Screen Display
Bright Flashlight illumination
Reverse Frequency
Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
Stopwatch
Remote Alarm
Priority Scan Function
Voice Encryption and Non-Standard CTCSS/DCS
Voice Compander

TECHNICAL SPECIFICATION

Intergration
Frequency Range	Suitable for Different Countries or Areas 144-148MHz & 430-440MHz
Step	5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
Channel Number	999
Work Mode	F2D / F3E
Operating Temperature	-20℃～+40℃
Voltage	7.4 VDC
Antenna Impedance	50Ω

Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	≤500mW
Sensitivity	UHF/VHF:0.25µV(12dB SINAD)

Transmitter
	Wide	Narrow
Adjacent Channel Selectivity	≥70dB	≥60dB
Type of Modulation	16K F3E	11K F3E
Spurious	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Max Frequency Deviation	±5KHz	±2.5KHz
Frequency Stability	±2.5PPM
Audio Distortion	≤5%
Output Power	UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W
